      How to Change Motor LED Colors

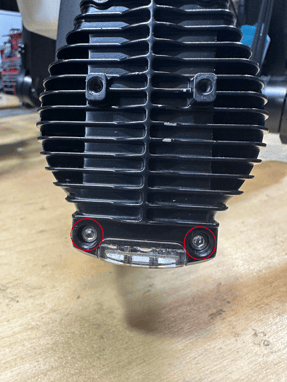

      Using a 2.5mm hex bit or Allen wrench, remove the two LED housing hex screws pictured below.

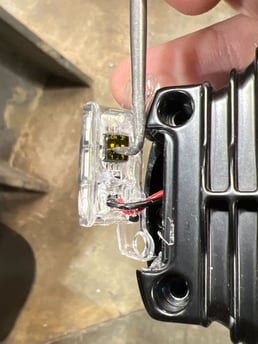

       Once both screws are removed pull the LED housing out slightly from the motor housing and adjust the dip switches as illustrated below.

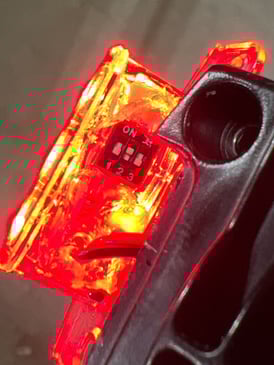

      For RED:

      Adjust the dip switches to; 1 OFF, 2 ON, 3 OFF

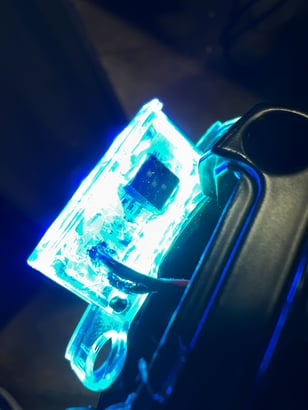

      For Blue:

      Adjust the dip switches to; 1 ON, 2 OFF, 3 ON

      Recommended: After adjustment is complete, place a small dab of Lexel or waterproof silicone to help prevent water intrusion.

      Reinstall LED housing and housing screws.
